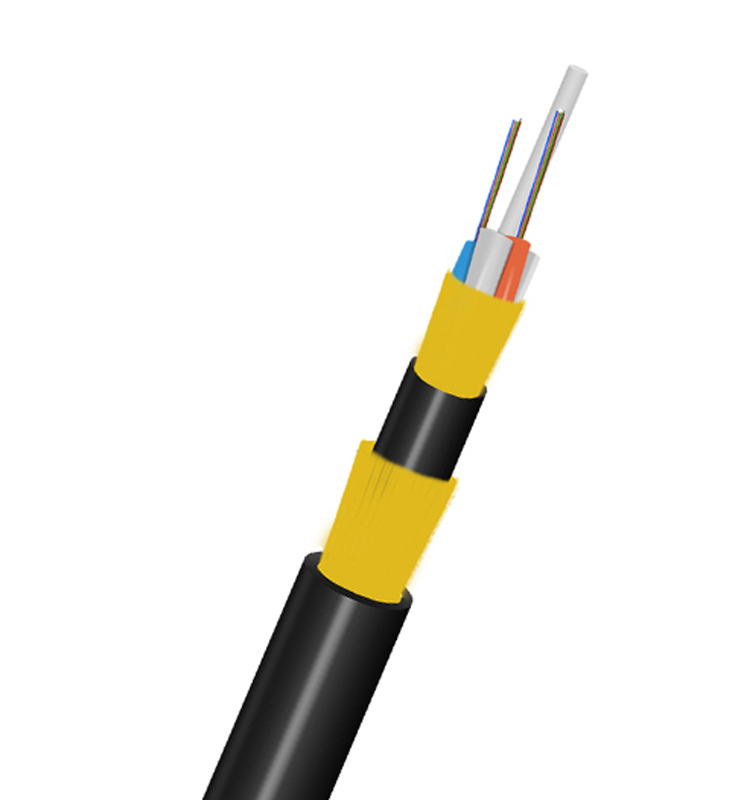

ADSS cable is loose tube stranded. Fibers, 250μm , are positioned
into a loose tube made of high modulus plastics. The tubes are
filled with a water-resistant filling compound. The tubes (and fillers) are stranded around a FRP (FiberReinforced Plastic) as a
non-metallic central strength member into a compact and circular cable core. After the cable core
is filled with filling compound. it is covered with thin PE (polyethylene) inner sheath.
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the
cable is completed with PE or AT (anti-tracking) outer sheath.
Features:
Low attenuation and dispersion, special control of exceed length
ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction
Appicable fieds:
Long-distance teecom,LAN in high -votage area or access to telecom
network
Installation: Sef-support aeria
Structure Characters:
Loose tube wifh mon-metalic strengthen member
High flexible amaid yarn
Can work at electrix field≤25KV/min a ling period
Temperature Characteristics:
Operate temperature range: -40o C to +60 o C
Storage temperature range: -40 o C to +60 o C
Max.allow working tension (KN) | Break strength (KN) | working tensile (KN) | Diameter (mm) | temperature (oC) |
| 2.5 | 6.25 | 1.56 | 12 | -40 ~ +60 |
| 3.5 | 8.75 | 2.19 | 12.2 |
| 4.5 | 11.25 | 2.81 | 12.3 |
| 6 | 15 | 3.75 | 12.5 |
| 7 | 17.5 | 4.38 | 12.7 |
| 8 | 20 | 5 | 12.8 |
| 9 | 22.5 | 5.63 | 12.9 |
| 10 | 25 | 6.25 | 13 |
| 11 | 27.5 | 6.88 | 13.1 |
| 12 | 30 | 7.5 | 13.2 |
| 14 | 35 | 8.75 | 13.5 |
| 16 | 40 | 10 | 13.7 |
| 18 | 45 | 11.25 | 14 |
| 20 | 50 | 12.5 | 14.2 |
Certifications
Shenzhen Skylynn Communication Ltd. have CE, RoHS and ISO9001
certificate. Now, we are going to do the Antel certificate.
