Indoor Optical Fiber Ribbon Cable 125μM GJFDBV 6 Core Fiber Optic Cable

Ask Lasest Price
Brand Name :	SKYLYNN or OEM, ODM
Certification :	ISO, ROHS, CE
Delivery Time :	5-10 DAYS
Payment Terms :	T/T, L/C, WEST UNION
Supply Ability :	100,000 cores

Add to Cart

Product Details
Company Profile

Indoor Optical Fiber Ribbon Cable 125μM GJFDBV 6 Core Fiber Optic Cable

Flat Optical Fiber Ribbon Indoor Optical Fiber Cable

Description

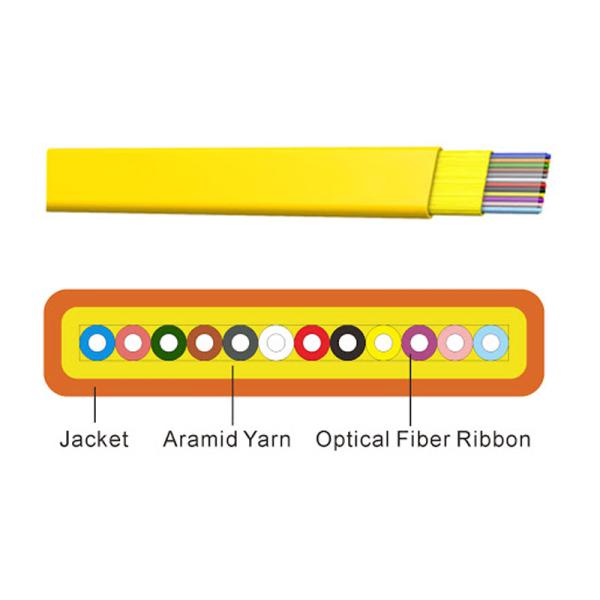

The flat fibre ribbon cable uses fibre ribbon as optical transmission medium, covered with aramid yarn as strength member, then extruded with a PVC sheath. Other sheath materials, like LSZH and TPU, are available on request.

Featuers

Ribbon fibre flexible connection jumper
Various indoor cabling solutions
Interconnection between apparatuses
High fiber density, small size, light weight, good looking and compact structure
Easy for installation and splicing, branching
Flame redtardant outer sheath offering good protection
All dielectric structure design, without electomagnetic induction effect.

Optical Charactics

		G.652D	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm		≤3.0 dB/km	≤3.0 dB/km
	@1300nm		≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km
	@1550nm	≤0.22 dB/km
Bandwidth (Class A)	@850nm		≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm		≥1000 MHz·km	≥600 MHz·km
Numerical Aperture			0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm

Cable Specification

Fiber count	4	6	8	12
Cable diameter (mm)	3.7x2.5	4.2x2.5	4.7x2.5	5.2x2.5
Cable weight (kg/km)	4.7	5.1	5.5	5.9
Temperature rating	0 ~+60℃
Operation storage	-5~+60℃
