MPO/MTP Trunk Patch Cable

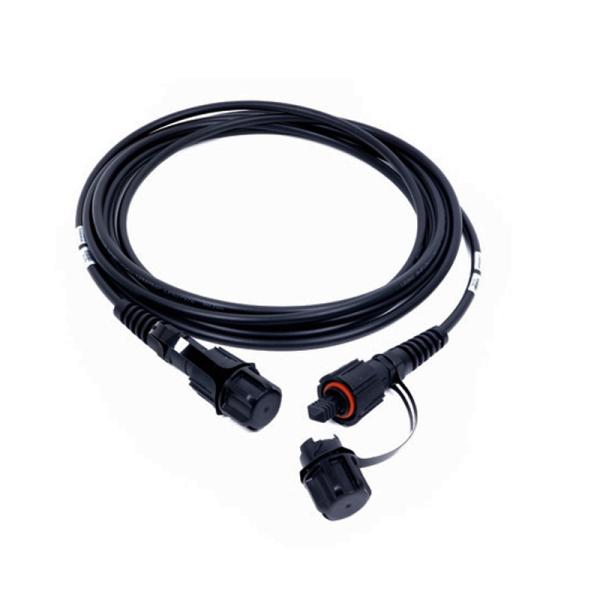

Outdoor 12 24 cores MPO to MPO Fan-Out BBU cable ODC/MTP ODVA/MPO waterproof Connector Fiber Optic Patch Cord

Description

MPO Fiber Patch cable/trunk cable is terminated with MPO connector on both ends. MPO Patch cable/trunk cables connect MPO modules together as a permanent link. The Patch cable/trunk cables are available with 12, 24, 48 and 72 fibers. Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels.

Features

• Low insertion loss, high return loss
• MT based Multi-fiber Connector, 4,8,12 and 24 fiber connector terminations and assemblies
• Economical solution for mass-termination of fiber
• Designed for low loss and standard loss SM and MM applications
• Color coded housings available to differentiate fiber type, polish type and/or connector grade
• Good in repeatability and exchangeability
• 100% pre-terminated and tested in factory to ensure transfer performance.
• Rapid configuration and networking, reduce installation time. 3.Supports 40G and 100G network applications.
• Cable Jacket material: LSZH, OFNR, OFNP available.
• Supports up to 12F, 24F, 48F, 72F, 96F, 144F, customized

Cable Parameters

Optical Characteristics

Polarity
