    0.3dB Fiber Optic Passive Components Male To Female Adapter 45dB SC UPC SM

    Ask Lasest Price
    Brand Name : SKYLYNN or OEM, ODM
    Certification : ISO, ROHS, CE
    Delivery Time : 2-7 DAYS
    Payment Terms : T/T, L/C, WEST UNION
    Supply Ability : 800,000
    • Product Details
    • Company Profile

    0.3dB Fiber Optic Passive Components Male To Female Adapter 45dB SC UPC SM

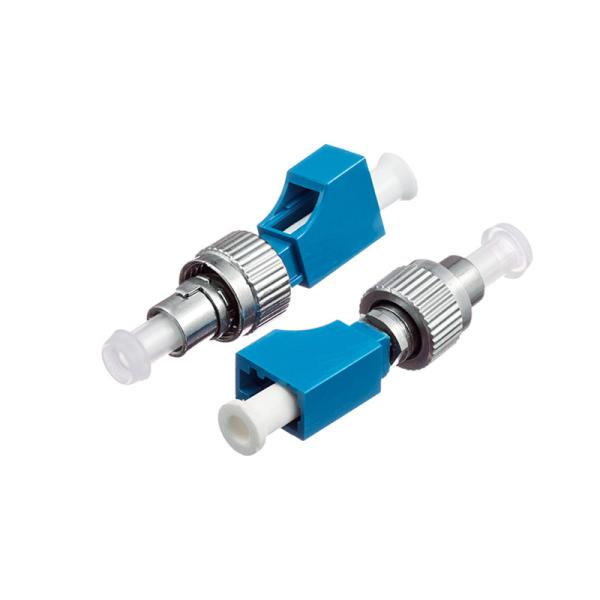

    Male to Female Series Adapter


    Description

    Male to female adapter joins separated connectors. They are assembled in panels and allow connecting pigtails with patchcords. For every type of connector there is equivalent type of adapter. Generally there are 2 types of alignment sleeve within an adapter-phosphor bronze for multimode and ceramic for singlemode. The male to female adapters have the low insertion loss and back reflection loss. And it also allowed in the fiber optic telecommunications


    Features
    • Low insertion loss and back reflection loss
    • Ferrule end surface pre-domed
    • Precision anti-rotation key and corrosion resistant body
    • UL-rated plastic housing
    • Telcordia style boots
    • Free-floating ceramic ferrule
    • Zirconia sleeves or Phosphor bronze sleeves
    • D-shaped easily installs into panel mount
    • RoHS compliant


    Applications
    • Fiber Optic Telecommunications
    • LAN (Local Area Network)
    • FTTH (Fiber To The Home)
    • CATV&CCTV System
    • High speed transmission systems
    • Fiber optic sensing
    • Industtial, Mechanical and Military


    Specification


    ParameterUnitSC
    SMMM
    PCUPCAPCPC
    Insertion Loss (Typical)dB≤0.3≤0.3≤0.3≤0.3
    Return LossdB≥45≥50≥55≥30
    Exchange abilitydB≤0.2
    Repeat abilitydB≤0.2
    DurabilityTime>1000
    Operating Temperature-40~75
    Storage Temperature-45~85
