19in Fiber Optic Cable Junction Box Rack Mounted Fiber Splitter Box 1X32

19 Inch Rack Mounted FTTH PLC Splitter

Description

Fiber optic PLC splitter is an optical power device based on quartz plate planar of light wave technology, which is widely used in local side or termination of Passive Optical Network (EPON, BPON, GPON etc.) for splitting of optical signal. It offers superior optical performance, high stability and high reliability; meet various application requirements in different environments.

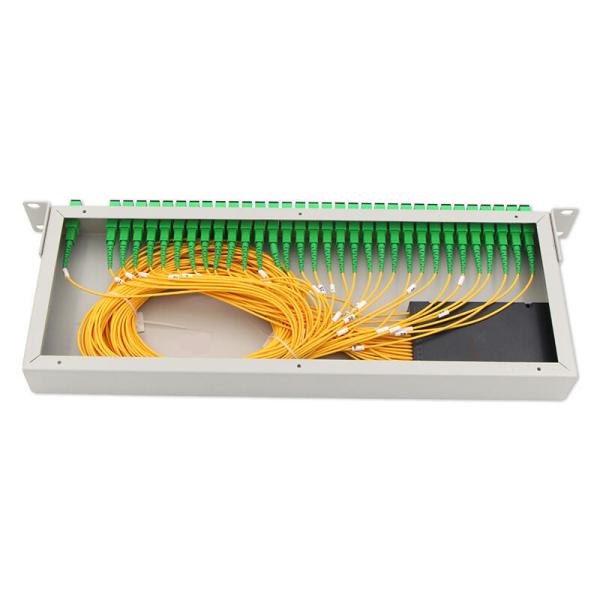

19″ 1U Rack Mounted PLC Splitter is ranging from 1×2 ports to 2×64 ports. It is suitable for the use in telecommunication network, central office optical cable system and premise fiber network. The PLC splitter inside the box is plastic box type which available for 2.0mm pigtail. Each 19″ 1U Rack Mounted PLC Splitter is fully loaded with panels, adaptors (optional) and accessories and is ready for installation.

Features

Various coupling ratio
Single mode and multi mode available
Low insertion loss, low PDL
Environmental stable
Industry standard and custom housing available
Variety of connectors available

Applications

Optical communication system
System and signal monitoring
CATV Systems & Fiber Sensors
Fiber to the home (FTTH)
Network redundancy
Laser splitting

Parameters

Coupling Ratio( % )		1~50
Directivity (dB)		≥55
Temperature Coefficient(Max.)(dB/ºC)		0.002
Operating Temperature ( ºC)		-20~+70
Storage Temperature ( ºC )		-40~+85
Port Configuration		1X2 or 2X2
Package Dimension (mm)		A,B,C,D,M,G

Single mode Wideband Coupler

Grade	P	A
Coupling Ratio ( % )	50/50	50/50
Excess Loss (Typ.) (dB)	0.1	0.15
Max. Insertion Loss (dB)	3.4	3.5
PDL (dB)	0.1	0.15
Operating Wavelength (nm)	1310±40,1550±40,1480±40 or Custom Wavelength
