MGXTWV Mining Bulk Outdoor Central Loose Tube G652 G655 Multimode Outdoor Optical Fiber Cable

Ask Lasest Price
Brand Name :	SKYLYNN or OEM, ODM
Certification :	ISO, ROHS, CE
Delivery Time :	5-10 DAYS
Payment Terms :	T/T, L/C, WEST UNION
Supply Ability :	100,000 cores

Add to Cart

Product Details
Company Profile

MGXTWV Mining Bulk Outdoor Central Loose Tube G652 G655 Multimode Outdoor Optical Fiber Cable

Central Loose Tube Mining Optical Fiber Cable

Description

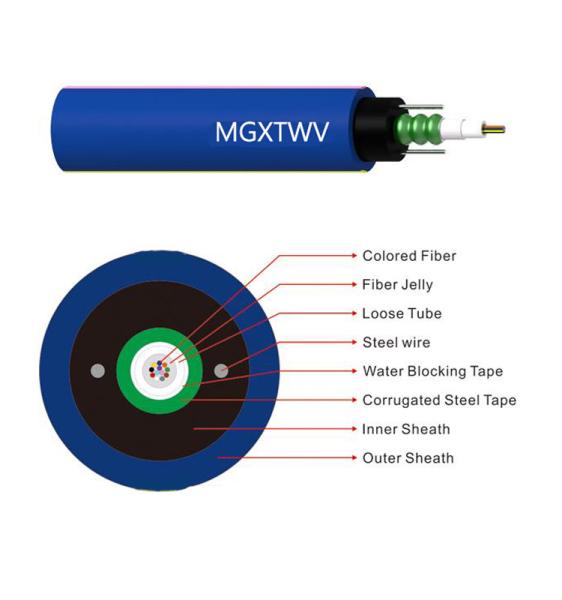

The fibers of MGXTSWV optical fiber cable, 200μm or 250μm, are positioned in a loose tube which is made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape, over a thin inner PE sheath. The optic fiber cable is completed with a polyethylene (PE) outer sheath. The center beam tube cable: from the inside to the outside for the optical fiber, optical fiber cream, loose tube, thin steel wire (with a circle around), steel, PE sheath, flame retardant sheath

Features

Good mechanical and temperature performance
High strength loose tube has good performance of water proof and high strength
Special tube filling compound ensure a critical protection of fiber
Crush resistance.
Two parallel steel wires ensure tensile strength
PSP enhancing moisture-proof and anti rodent
Good water resistance material prevent longitudinal seepage
Blue flame retardant PVC as second sheath to make the cable has good flame retardant performance.

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20℃)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable	Fiber Count	Cable Diameter mm	Cable Weight Kg/km	Tensile Strength	Crush Resistance Long/Short Term N/100m	Bending Radius Static/Dynamic mm
MGXTSWV-2～12	2～12	11	130	500/1000	500/1500	15D/30D
