    Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um

    Ask Lasest Price
    Price : USD 0.69-0.71 / kilometers
    Supply Ability : 100,000 cores
    Brand Name : SKYLYNN or OEM, ODM
    Certification : ISO, ROHS, CE
    Delivery Time : 5-10 DAYS
    Payment Terms : T/T, L/C, WEST UNION
    • Product Details
    • Company Profile

    Direct Burial GYTA53 Multimode Underground Fiber Optic Cable 250um

    Direct-burial GYTA53 Fiber Optic Cable 24 Cores Underground Cable


    Description

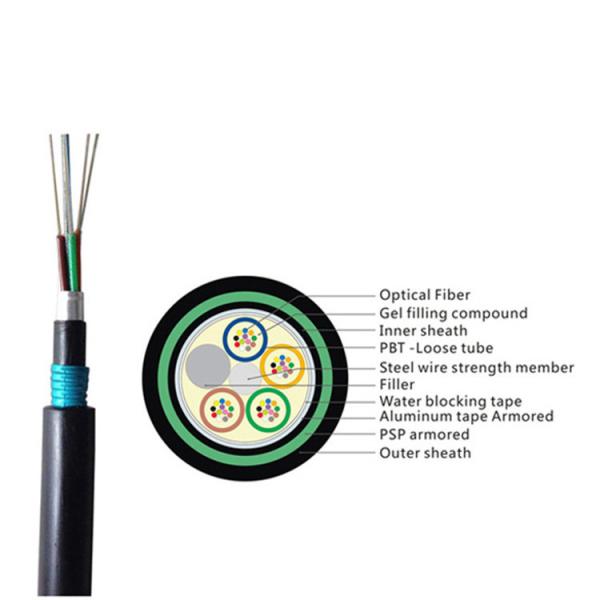

    The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.


    Features

    • Good mechanical and temperatureperformance
    • High strength looes tube that is hydrolysisresistant
    • Special tube filling compound ensure a critical protection offiber
    • Crush resistance andflexibility
    • The following measures are taken to ensure the cablewatertight:
    • Steel wire used as the central strength member
    • Loose tube fillingcompound
    • 100% cable corefilling
    • APL moisture barrie
    • PSP enhancingmoisture-proof
    • Water-blockingmateria

    Standards

    GYTA53 cable complies with Standard YD/T 901-2001as well as IEC 60794-1.


    Optical Characteristics

    G.652G.65550/125μm62.5/125μm
    Attenuation (+20℃)@850nm≤3.0 dB/km≤3.0 dB/km
    @1300nm≤1.0 dB/km≤1.0 dB/km
    @1310nm

    ≤0.36

    dB/km

    ≤0.40

    dB/km

    @1550nm

    ≤0.22

    dB/km

    ≤0.23dB/km
    Bandwidth (Class A)@850nm≥500 MHz·km≥200 MHz·km
    @1300nm

    ≥1000

    MHz·km

    ≥600 MHz·km
    Numerical Aperture0.200±0.015NA0.275±0.015NA

    Cable Cut-off Wavelength

    λcc

    ≤1260nm≤1480nm

    Technical Parameters

    Cable TypeFiber CountTubesFillersCable Diameter mmCable Weight kg/kmTensile Strength Long/Short Term NCrush Resistance Long/Short Term N/100mm

    Bending Radius Static

    /Dynamic

    mm

    GYTA53-8~128~122412.62091000/30001000/300010D/20D
