12 Core GYTC8A Aerial Multimode Fiber Optic Cable Self Supporting

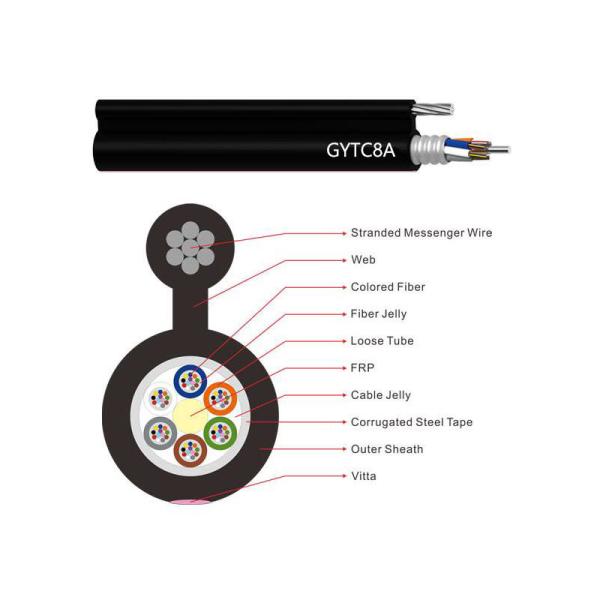

Aerial Self-Supporting Figure 8 Fiber Optic Cable GYTC8A

Description

The fibers, 250μm , are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure.

Features

Low attenuation and dispersion, special control of exceed length ensure the good transmission performance in varying environment.
Excellent mechanical performance
Good flexibility and bending performance
Small outer diameter, lightness and compact construction

Optical Characteristics

		G.652	G.655	50/125μm	62.5/125μm
Attenuation	@850nm			≤3.0 dB/km	≤3.0 dB/km
(+20℃)	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc		≤1260nm	≤1480nm

Technical Parameters

Cable Type	Fiber Count	Tubes	Fillers	Cable Diameter mm	Cable Weight kg/km	Tensile strength	Crush resistance	Bending radius
						Long/Short term	Long/Short term	Static/Dynamic
						(N)	(N/100mm)	(mm)
GYTC8A-6	6	1	5	10.4*18.3	150	2500/5000	300/1000	105/210
GYTC8A-12	12	2	4	10.4*18.3	150	2500/5000	300/1000	105/210
GYTC8A-24	24	4	2	10.4*18.3	150	2500/5000	300/1000	105/210
GYTC8A-36	36	6	0	10.4*18.3	150	2500/5000	300/1000	105/210
GYTC8A-48	48	4	2	11.3*19.2	170	2500/5000	300/1000	115/330
GYTC8A-60	60	5	1	11.3*19.2	170	2500/5000	300/1000	115/330
GYTC8A-72	72	6	0	11.3*19.2	170	2500/5000	300/1000	115/330
GYTC8A-96	96	8	0	12.7*20.6	200	2500/5000	300/1000	130/260
GYTC8A-144	144	12	0	15.5*23.4	270	2500/5000	300/1000	155/310
GYTC8A-192	192	8	0	14.5*22.4	250	2500/5000	300/1000	145/290
GYTC8A-288	288	12	0	18.1*26.0	350	2500/5000	300/1000	185/370
