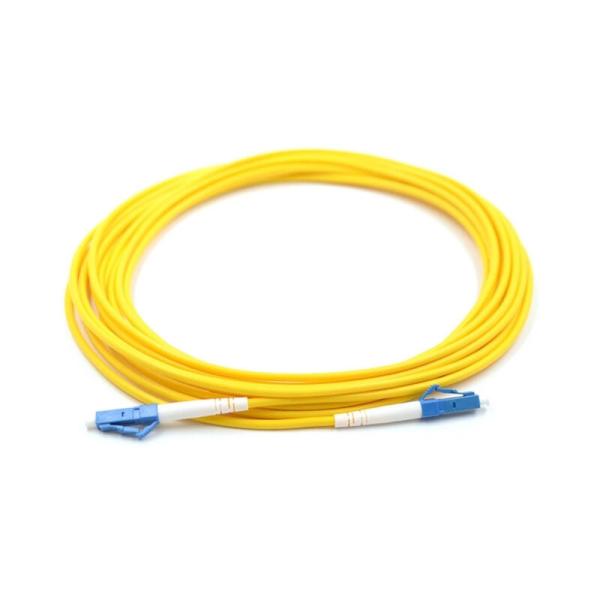

LC Series Fiber Patch cords

Description

These three areas all contribute to the performance of a patch cord, but above all the manufacturing process defines the performance of the assembly.

The LC connector was the first small form factor connector on the market. The use of a high performance 1.25mm ferrule gives the connector extremely high performance. LC connector comprises of a polymer body and a ceramic ferrule/sring/crimp barrel assembly plus a crimp over sleeve and rubber boot. These connectors are suitable for 900um and 2mm cables.

Compliance: IEC-61754-4/TIA 604-3/Telcordia GR-326-core

Application

• ODF of optical transmission system

• Connection of optical transmission equipments

• Telecommunication network

• Computer network

• CATV

• High quality graphic transmission network

• High speed data transmission network

Features

• Quick, highly repetable, low-loss connections

• Simplex and duplex

• Singlemode and multimode

• PC and APC polishing

• Various boot(cable) sizeds available

• Various connectors available

• Interferential parameters

• Hybrid patch-cords are available upon request

Specifications
